Notes

1. Server must use: SQL Server 2022 with ODBC Driver 17 for SQL Server
2. List of scripts that need attention to support HGK:
- Language.xlsx / NDLanguage.edf need to be updated to support new "Special Effects". The client also uses: EffectEx.edf
- Item Combine, now have new behaviour of eating requirements items, item_combine_mgr.json
use_new_fail_out = true, a positive FailOutItem means eating random materials from 1 to N.
use_new_fail_out = false, a positive FailOutItem means saving any N materials.
- Updated Script\BoxItemOut.dat calculations of probability. Probability is now determined using the total combined chance of all rewards rather than a fixed 10000. Reward is now fully randomized according to configured chances, not affected by reward order.
- Removed Script\SetItemEff.dat and replaced it with the following configuration files: HGKProtect\config\set_item_eff.csv and HGKProtect\config\set_item_eff_linked.csv. The client now uses SetItemEffectNew.edf.
- Removed Map\Map_Data.spt and replaced it with Map\map_data.csv
- Removed Initialize\PvpCashPoint.ini and replaced it with the following configuration files: HGKProtect\config\pvp_talik_recovery.csv, HGKProtect\config\pvp_class_value.csv, HGKProtect\config\pvp_lv_limit.csv
tbc...

Open: server\Initialize\WorldSystem.ini

edit [MainThread] section

server\Initialize\WorldSystem.ini > [MainThread]

[MainThread]
SleepTerm = 0
SleepValue = 0
SleepIgnore = 1



add new section for [DQSThread]

server\Initialize\WorldSystem.ini > [DQSThread]

[DQSThread]
SleepTerm = 0
SleepValue = 0
SleepIgnore = 1



Before you begin, ensure the following:

1. Ensure the databases are set up: BILLING (with table tbl_UserStatus containing the Id column as binary), RF_USER, and RF_WORLD.
2. Ensure the following ODBC (User DSN) entries are set up: BILLING, RF_USER, and RF_WORLD.
3. Make sure you already have the license file.

Possibility 1

Mistake at Developing (so can be from multiple factor, such as: Initialize, Map, Quest, or Scripts)

Possibility 2

• This typically occurs due to a typo or syntax error at global.json or any .json files, validate your .json configuration HERE.
• Its also possible that some Item Codes in the .json config files do not exist.

Possibility 3

• There was a problem accessing the license check server.
• Your server has not been registered yet.
• You forgot to configure environment.json.
• A change has been detected in your server hardware.

Possibility 4

Stuck or failed to update the new version database: tbl_schema_version and database_migration.json.

Possibility 5

CGameServerView::OnCreate(...): g_Main.Init() Fail!
Try restoring the original version of \RF_Bin\Initialize\PvpCashPoint.ini.

Possibility 6

Domain certificate corruption or failure detected during license verification
Set enable_server_certificate_verification to false at environment.json

Possibility 7

Starting from version 1.7.1.35, ResourceItem.dat requires that EffNum and Eff match.
1. List of original CCR ResourceItem.dat that need to be corrected: irstl02 irstl03 irstl04 irstl05 irqsa04 ircry03 ircsa40 irchm54 ircme55 irrtn01 irqsa05 irqsa07 irqsa08 irbud08
2. PotionItem.dat make sure EffCode is exist at PotionItemEffect.dat
3. BulletItem.dat make sure EffectIndex is exist at BulletItemEffect.dat
4. PotionItemEffect.dat, ClassSkill.dat, Force.dat, Skill.dat, BulletItemEffect.dat make sure you use valid TempEffectType, TempParamCode, TempValue, ContParamCode, ContParamIndex, and ContValue.
5. Equipments XXXItem.dat make sure you use valid EffCode and EffUnit.
REMEMBER! Make sure that Eff is valid and exists, otherwise, it will cause issues.

Possibility 8

Starting from version 1.7.2.36, BoxItemOut.dat needs to have all non-existent item codes removed from its results.
It will show an message box with title: ZoneStart
Component: addon.box_smart_open
Failed due to:
found error. see log ..\ZoneServerLog\Systemlog\LoadingProcess.log
1. You can remove the lines for these box codes: bxxts04 and bxxts05.
2. Find bxqsa03 and delete iwtjt40.
For reference, these item codes do not exist: iyfil25, iyfil26, iyfil27, iyfil28, iyfil29, iyfil30, iyfil31, iyfil32, iyfil33, iyfil34, iyfil35, iyfil36, iyfil37, iyfil38, iyfil39, iyfil40, iyfil41, iyfil42, iyfil43, iyfil44, iyfil45, iyfil46, iyfil47, iyfil48, iyfil49, iyfil50, iyfil51, iyfil52, iwtjt40.

Advice

• I recommend performing step-by-step debugging using the default CCR configuration for Initialize, Map, Quest, and Scripts.
• If that works, proceed with the default HGKProtect configurations but with your setuped environment.json
• By testing each step individually, you can identify the exact cause of the error or failure.

Possibility 1

You might be using a different BILLING database. This usually happens if you are using tables tbl_personal_billing and tbl_user.

Solution: Use the BILLING database with table tbl_userstatus containing the Id column as binary, then run the queries below.

Solution

/* HGK BILLING */
USE [BILLING]
GO
ALTER PROCEDURE pAddCashAmount
    @s_userid varchar(20),
    @s_subsystem_name varchar(64),
    @s_cash float
AS
BEGIN
    SET NOCOUNT ON;
    DECLARE @before_amount float = -1
    DECLARE @after_amount float = -1

    UPDATE [dbo].[tbl_UserStatus]
    SET  @before_amount = [Cash], [Cash] += @s_cash, @after_amount = [Cash] + @s_cash
    WHERE [id] = CONVERT(binary,@s_userid);

    INSERT INTO [dbo].[tbl_change_amount] ([userid],[subsystem_name],[change],[before_amount],[after_amount],[Date])
    VALUES (@s_userid,@s_subsystem_name,@s_cash,@before_amount,@after_amount,GETDATE())

    SELECT 1 as operation_status;
END
GO

USE [BILLING]
GO
ALTER PROCEDURE pAddPcBangTime
    @s_userid varchar(20),
    @s_subsystem_name varchar(64),
    @addhour int
AS
BEGIN
    SET NOCOUNT ON;
    IF (SELECT Status As BillType FROM [tbl_UserStatus] WHERE Id = CONVERT(binary,@s_userid)) = 2
        UPDATE [tbl_UserStatus] SET DTEndPrem = DATEADD(HOUR, @addhour, DTEndPrem) WHERE Id = CONVERT(binary,@s_userid);
    ELSE
        UPDATE [tbl_UserStatus] SET Status = 2, DTEndPrem = DATEADD(HOUR, @addhour, GETDATE()) WHERE Id = CONVERT(binary,@s_userid);

    SELECT 1 as operation_status;
END
GO

USE [BILLING]
GO
ALTER PROCEDURE [dbo].[pGetPcBangTime]
    @s_userid varchar(20)
AS
BEGIN
    SET NOCOUNT ON;
    SELECT DTEndPrem as pc_bang_end FROM [tbl_UserStatus] WHERE Id = CONVERT(binary,@s_userid);
END
GO

USE [BILLING]
GO
ALTER PROCEDURE pSubCashAmount
    @s_userid varchar(20),
    @s_subsystem_name varchar(64),
    @s_cash float
AS
BEGIN
    SET NOCOUNT ON;
    BEGIN TRANSACTION;
    BEGIN TRY
        IF @s_cash <= 0
            SELECT 0 as operation_status;
        ELSE BEGIN
            DECLARE @before_amount float = -1
            DECLARE @after_amount float = -1

            UPDATE [dbo].[tbl_UserStatus]
            SET  @before_amount = [Cash], [Cash] -= @s_cash, @after_amount = [Cash] - @s_cash
            WHERE [Id] = CONVERT(binary,@s_userid);

            INSERT INTO [dbo].[tbl_change_amount] ([userid],[subsystem_name],[change],[before_amount],[after_amount],[Date])
            VALUES (@s_userid, @s_subsystem_name, -@s_cash, @before_amount, @after_amount, GETDATE())

            SELECT
                CASE
                    WHEN @after_amount < 0 THEN 0
                    ELSE 1
                END as operation_status;

            IF @after_amount < 0
                RAISERROR (15600,-1,-1, 'pSubCashAmount');
        END
    END TRY
    BEGIN CATCH
        IF @@TRANCOUNT > 0
            ROLLBACK TRANSACTION;
    END CATCH;

    IF @@TRANCOUNT > 0
        COMMIT TRANSACTION;
END
GO
/*END OF LINE HGK */



Possibility 2

Your account not exist in the tables

Solution: Insert your account into the tables manually, or run the query below (but make sure you are using BILLING with tbl_userstatus (id: binary)) to automatically insert your account when you open the Cash Shop.

Solution

USE [BILLING]
GO
ALTER PROCEDURE [dbo].[RF_CheckBalance]
    @Login varchar(13),
    @Balance bigint = 0 OUTPUT
AS
BEGIN
    SET NOCOUNT ON;

    IF NOT EXISTS (SELECT Cash FROM [dbo].[tbl_UserStatus] WITH (NOLOCK) WHERE id = CONVERT(binary, @Login)) BEGIN
        INSERT INTO [dbo].[tbl_UserStatus] (Id, Status, Cash, DTStartPrem, DTEndPrem) VALUES (CONVERT(binary, @Login), 1, 0, GETDATE(), GETDATE());
        SET @Balance = 0;
    END
    ELSE BEGIN
        SET @Balance = (SELECT [Cash] FROM [dbo].[tbl_UserStatus] WITH (NOLOCK) WHERE [Id] = CONVERT(binary, @Login));
    END
END
GO



Configure looting speed to 500 ms

system.player.json
"loot_take_delay_ms": 500,
"loot_delay_clamp_min": 0,
"loot_delay_clamp_max": 100,


client_memory_patch.json
"address": "0x13F7EF",
"value": "F401"



Ensure character position synchronization after each attack

fix.attack_system.jsonforce_fix_position
"skill_required": true,
"force_required": true,
"normal_required": true,
"siege_required": true,
"mau_required": true,
"spec_required": true



Apply a short delay to player actions following MAU mount or dismount (to prevent skip animation or cheat things)

fix.attack_system.jsonunit_acting_delay
"take": 2100,
"leave": 1567



Display the number of online users for website

main_thread.json
"save_server_display": true,



Show chip HP only for GM characters (council behavior remains the same)

stone_hp.json
"min_lv": 100

client_memory_patch.json
"address": "0x144F8E",
"value": "EB"



Restrict character names to contain only letters and numbers

create_player.json
{
    "rules": [
        {
            "pattern": "[^a-zA-Z0-9]",
            "group_tag": "memek"
        }
    ],
    "groups": {
        "memek": {
            "min_match": 0,
            "max_match": 1
        }
    }
}



Show/Hide upgrade Success Chance

enchant_chance.jsonshow_chances
set to true or false
After editing → Restart ZoneServer → copy \server\HGKProtect\Enchant.edf → put to patch \client\datatable\Enchant.edf


Tweak





Possibility 1

This usually occurs when theres a version mismatch between the client and server.
Make sure to use latest version & same version for Client: RF_Online.bin and for Server: HGKProtect.dll

Possibility 2

This usually happens when the server GateIP or ZonePort is misconfigured.
GateIP can be configured in WorldInfo.ini, and ZonePort can be configured in server_memory_patch.json.
This issue can also occur if you forget to whitelist the port in the firewall.

Possibility 3

The server is full (2532++), or the users connection is unstable.

Possibility 1

Usually happen when Client Files is missing or corrupt.
Make sure to use Clean and Complete Client (2232 / GU Version)

Possibility 2

You forgot to put "HGK Required Files" to Client.
Make sure to restart your zone and update the client with the necessary files every time you make edits to any of the related modules listed below.
client_memory_patch : server\HGKProtect\memory_patch.bin and put into client\System\memory_patch.bin
radius : server\HGKProtect\RadiusView.edf and put into client\DataTable\RadiusView.edf
transmog : server\HGKProtect\Transmog.edf and put into client\DataTable\Transmog.edf
item_sockets : server\HGKProtect\GemSockets.edf and put into client\DataTable\GemSockets.edf
fast_combination : server\HGKProtect\FastCombination.edf and put into client\DataTable\FastCombination.edf
season_pass : server\HGKProtect\SeasonPass.edf and put into client\DataTable\SeasonPass.edf
enchant_upgrade_ex : server\HGKProtect\Enchant.edf and put into client\DataTable\Enchant.edf
equip_durability : server\HGKProtect\ItemRepair.edf and put into client\DataTable\ItemRepair.edf
This also includes other HGK files such as .ini, .spr, and .dds.

Possibility 3

Regarding Asset Encryption
• Module is enabled, but the path to asset_encrypt.key is incorrect. To fix this, update asset_encryption.json with the correct path of asset_encrypt.key.
• Module is disabled, but you are still using encrypted files.
• You are using improperly encrypted files. Please re-encrypt them with the correct asset_encrypt.key.
• Your encrypted files appear to be corrupted. Re-encrypt them to resolve the problem.
• The files were encrypted using a different asset_encrypt.key.

Possibility 4

Mistakes during development, such as skin-related files (e.g., .msh), item-related files (e.g., .edf), or UI-related files (e.g., .spr), may cause issues.

Possibility 5

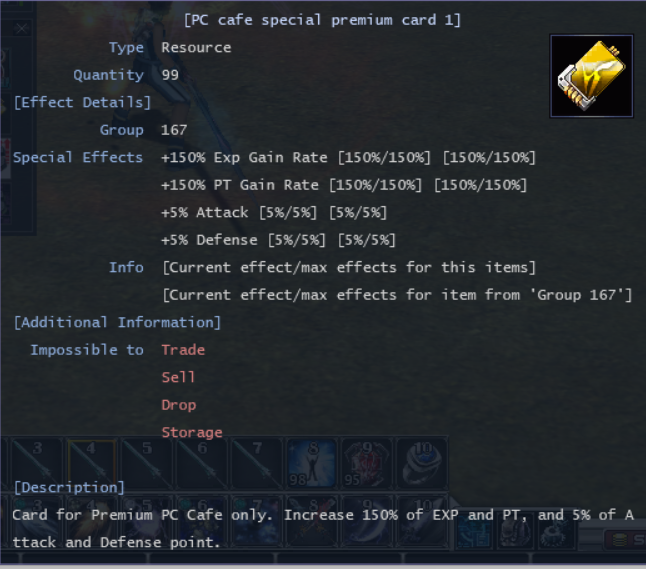

This usually happens related to "Special Effects"
Item.edf such as ResourceItem, make sure that EffNum and Eff match.
resource_effects.ini has invalid configuration.

• Up to 24 selectable results (default was only 5).
• Allow saving results if the window is accidentally closed.
• Allow ignoring the upgrade requirement check.
• Allow upgrade transfer.
Below is an explanation of how 'Ignore' and 'Transfer' upgrade work.
The E symbol is responsible for ignoring the value and transferring the value, only one material containing such a symbol is possible in the materials. in the results, this symbol is responsible for copying the value
The D symbol is responsible for ignoring the value, there are no restrictions on its use in materials. for results this symbol has no meaning

if combination material has a reference marker (E) in enchant, then the index for LR will be selected from this material (this is especially useful when it is necessary to indicate several LL in the materials)

examples of materials with values that are a marker for enchant transfer
material with 0xEEEEEEEE suits any enchant, any number of slots
material with 0x7EEEEEEEE will ignore all enchant, requires 7 slots
material with 0x5FFFFEEE will ignore taliks in first 3 holes, other holes must be empty, requires 5 slot
result with 0x7EEEEEEEE, transfer all enchant, expose 7 slots
result with 0x5FFFFEEE, transfer enchant from the first three holes, set 5 slots

examples of materials with values that are not a marker for enchant transfer
material with 0xDDDDDDDD suitable for any enchant, any number of slots
material with 0x7DDDDDDD will ignore all enchant, requires 7 slots
material with 0x5FFFDDDD will ignore taliks in first 3 slots, other holes must be empty, requires 5 slots

if you make a combination with materials that do not have E symbols, and use E symbols in the results, then the result is undefined
if you make a combination with several materials that have E symbols, and use E symbols in the results, then the result is undefined

Open: RadarItem.dat

Find EffSort, add 5th value 0 / 1.

Value
Description
OFF / always show commonex-3-3 (default behavior)
0
OFF / always show commonex-3-3
1
activate radar extended
Explanation:
Default rdpvp03 was 1110 its gonna be the same as 11100
If you want to show each race, change it to 11101


By default, you need to edit client\SpriteImage\common\commonex.spr to represent the icon information.

File
Description
commonex-3-1
Same Race
commonex-3-2
Same Race, Race Leader
commonex-3-3
Bellato
commonex-3-4
Bellato, Race Leader
commonex-3-5
Cora
commonex-3-6
Cora, Race Leader
commonex-3-7
Accretia
commonex-3-8
Accretia, Race Leader
commonex-3-9
Pitboss

Starting from version 1.7.1.35 errors in resource effects are no longer tolerated, EffNum and Eff must match.
List of original items that need to be corrected at ResourceItem.dat: irstl02 irstl03 irstl04 irstl05 irqsa04 ircry03 ircsa40 irchm54 ircme55 irrtn01 irqsa05 irqsa07 irqsa08 irbud08
NEW Information about Special Effects Extended can be viewed HERE.
NEW Allows effects from equipment to be used.
NEW Allow negative values for Eff 2 (Reduces EXP Gain Rate).

Below is a list of all resource effects.

Eff
Description
1
Discount NPC Purchase/Sell
2
EXP Gain Rate
3
Language Translator
4
Item Level
5
EXP Gain Rate
6
PT Gain Rate
7
Mining Speed
8
Item Drop Rate
9
EXP Gain Rate
10
Discount NPC Purchase
11
Discount NPC Sell
12
HP Regeneration
13
FP Regeneration
14
SP Regeneration
15
Max HP
16
Max FP
17
Max SP
18
Attack
19
Melee Attack
20
Melee Skill Damage
21
Range Attack
22
Range Skill Damage
23
Force Attack
24
Defense
25
Vamp (Damage to HP)
26
Vamp (Damage to FP)
27
Vamp (Damage to SP)
28
Radius of Monster Aggro
29
MAU Attack (Melee Weapon)
30
MAU Attack (Range Weapon)
31
MAU Attack (Force Weapon)
32
MAU Attack (Defense)
33
Animus Attack (Force Weapon)
34
Animus Attack
35
Animus Attack
36
Animus Attack
37
Animus Attack
38
Attack of Melee/Range Weapon
39
Skill Range
40
Ignore Nuclear Debuff
41
Movement Speed
42
Reflects 100% of Received Damages
43
Accuracy (Melee Weapon)
44
Accuracy (Range Weapon)
45
Force Accuracy
46
Skill Accuracy
47
Chance of Critical Attack
48
Accuracy
49
Avoid
50
Restricts Actions
51
Chance Resurrect On Death *DO NOT USE*
52
Monsters Level Requirement
53
Party Level Requirement
54
Reflects of Received Damages
55
Using any teleport scrolls
56
+100% Chance Avoid
57
Block Chance
58
-100% Potion Delay
59
PT Melee Gain Rate
60
PT Range Gain Rate
61
PT Force Gain Rate
62
PT Defense Gain Rate
63
PT Shield Gain Rate
64
PT Animus Gain Rate
65
PT MAU Gain Rate
71
EXP Gain Rate
72
EXP Gain Rate
73
Item Drop Rate
74
Item Drop Rate
75
Item Drop Rate
76
Detect
77
Debuff Duration
78
Chance Ignore Shield Block
79
Ignorant Talic in Weapon
80
Favor Talic in Armors
81
Chance to Protect Items from Dropping on Death *DO NOT USE*
82
All PT Gain Rate
84
Max SP
85
FP Cost
86
Accuracy
87
Avoid
88
Max HP/FP
89
Attack
90
Defense
91
Skill Level
92
Stealth
93
Detect
94
Remove Damage Protection Skill
95
Movement Speed
96
Reveals information about enemy vulnerability
97
FP Regeneration
98
Force Attack
99
Max FP
100
Vamp (Damage to HP)
101
Vamp (Damage to HP)
102
Critical Attack Chance
103
Attack Range
104
Defense
105
Debuff Duration
106
HP Regeneration
107
Avoid
108
Attack Delay (Launcher)
109
Force Attack Range
110
Chance Receiving Critical Attack
111
Block Chance
112
Elemental Resistance
113
Max HP
114
Debuff Duration
115
Chance Ignore Shield Block
116
Range Skill Delay
117
Melee Skill Delay
118
Force Delay
120
Magnet Loot
For Resource Items "Effect Details" on the client side. If you want to enable/disable certain parts or modify the wording, you can edit them in client\DataTable\en-gb\resource_effects.ini

This is regarding how effects gonna applied if character have multiple ResourceItem with same ItemSerise

Open: resource_serise.json and to be safe, set it to: dynamic

Below is an explanation and example

CCR behaviour :
on clients side : dynamic type
on server side : (pay attention to the order on last line):
99 item A + 99 item B = 50 value
99 item A + 99 item B + 99 item C = 500 value
99 item A + 99 item C + 99 item B = 50 value

example : item have same ItemSerise
item A : value 5, max value 50
item B : value 5, max value 50
item C : value 5, max value 500

static type (group boundaries are formed globally and do not depend on items in the inventory):
99 item A + 99 item B = 100 value
99 item A + 99 item B + 99 item C = 500 value

dynamic type (group boundaries are formed depending on the items in the inventory):
99 item A + 99 item B = 50 value
99 item A + 99 item B + 99 item C = 500 value

This can only be used by monsters.
Do not apply it to characters!

Open: ClassSkill.dat (need to use 2 column: ContParamCode, ContParamIndex, and ContValue)

ContParamCode1 ContParamIndex1 ContValue1 Description
Reflect Damage 3 54 0.42 42% damage taken will be reflected to the attacker.
ContParamCode2 ContParamIndex2 ContValue2 Description
Chance to Reflect 3 0 0.88 Theres 88% chance damage will be reflected.

Conclusion: There is an 88% chance for damage to be reflected, with 42% of the damage being returned to the attacker.

Here are all the possible points types used across all modules
[GMCommands] alterpoint
[Gem Socket] socket_item_records.csv socket_gem_records.csv
[Transmog] transmog_records.csv
[Council Election] vote.json
[Fast Combine] fast_combination.csv
[EnchantEx] enchant_explicit.csv
[Regen Points] auto_recover_point.json
[Equipments Repair] repair_records.csv

Type Description
dalant Race currency
gold Gold currency
pvp_point or pvp [PvpCash] PVP Points (PVP)
pc_point or pc [PvpPoint] Contribution Points (CPT)
processing_point or pp [ActionPoint_0] Processing Points (from ore cutting)
hunter_point or hp [ActionPoint_1] Hunting Points (from killing monsters)
gold_point or gp [ActionPoint_2] Gold Points (usually from gold capsules)
act_point_3 or ap3 [ActionPoint_3] Recover Points (used for recover sold items at NPC a.k.a module buyback)
act_point_4 or ap4 [ActionPoint_4] New Points 4
act_point_5 or ap5 [ActionPoint_5] New Points 5
act_point_6 or ap6 [ActionPoint_6] New Points 6
act_point_7 or ap7 [ActionPoint_7] New Points 7
act_point_8 or ap8 [ActionPoint_8] New Points 8
act_point_9 or ap9 [ActionPoint_9] New Points 9

These are all the possible TempEffectType used for point-based effects in the potion module

TempEffectType Description
190 Cash Points
182 or 204 Race currency
183 or 205 Gold currency
184 [PvpPoint] Contribution Points (CPT)
185 [PvpCash] PVP Points (PVP)
186 [ActionPoint_0] Processing Points
187 [ActionPoint_1] Hunting Points
188 or 57 [ActionPoint_2] Gold Points
210 [ActionPoint_3] Recover Points
211 [ActionPoint_4] New Points 4
212 [ActionPoint_5] New Points 5
213 [ActionPoint_6] New Points 6
214 [ActionPoint_7] New Points 7
215 [ActionPoint_8] New Points 8
216 [ActionPoint_9] New Points 9

Below are the new button IDs used by NPC

ButtonID
Text Description
164
Repair Item Open equipment repair window
165
Transmogrification Open transmog window for converting original equipment into new equipment skins
166
Undo Transmogrification Open undo transmog window for reverting equipment skin to their original form
167
Gem Socketing Open gem socketing window
168
Recover Sold Items Open buyback window

Problem: ipwhp01 can be used anytime
>Expected: ipwhp01 must be peace state
>Analyze: invalid UseState specified for ipwhp01, comparing to ipwhp03 can be used anytime.

Solution: PotionItem.dat → code ipwhp01 → UseState 1

UseState
Description
0
anytime
1
peace state
2
battle state
3
dead state

Problem: click item (or several item) with result price more than 1B = client crash.
Solution: NDLanguage.edf > Serial 1935 > change to [Invoice: %s]

Problem: When the UMT is attacked, it sends a notification. If its misconfigured, the client will crash (usually RU client).
Solution: NDLanguage.edf → Serial 2665 → change the text to The unmanned mining tool is under attack.
